Chrome Painted / Gold Painted 3D Adjustable Concealed Hinge
135x18x21 mm
Item No.: BG010
Name: 140*135x18*21mm Zinc Alloy 3D Adjustable Concealed Hinge for
Wooden Metal Door
Details:
| Size(Width x Height): | 140&135*18*21*23mm |
| Material: | Casting Zinc Alloy wings, Aluminum arm. |
| Adjustment range | up&down±3.0mm, left&right: ±3.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Chrome Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior
door etc |
| Weight loading: | 40 kgs/2 pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 30mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be
invisible installation,Concealed for a complete flush look,high
quality, high sensory, durable and silent |
Zinc Alloy 3D Adjustable Concealed Hinge Introduction:
Compared to SUS Adjustable Concealed Hinge, BG010 is made by
Casting Zinc alloy, the weight loading is less than SUS ones. it
mainly be used for light duty wooden doors or PVC Aluminum doors,
and the cost is much less too. So customer can choose according to
your door size and weight. If your door is not too heavy and wide,
BG010 is your better choice.
Our Adjustable Concealed Door Hinge BG010 is for use in metal or
wood applications, and it is universal for right&left open
doors. This hinge has been tested by 100,000 times on
open&close(weight loading 80 kgs/2 pcs). Usually we suggest to install 3 pcs of hinges/door. door size:
Minimum thickness 40mm, Max width 1000mm, max height 2000mm. If the
door height is more than 2100, please use 4 hinges.
Made in Jiangmen Guangdong CHINA, our 3D Adjustable Concealed
Hinges are made from 18-30mm on width, 95-160mm on height, Material
from SUS to Zinc alloy. The most comprehensive concealed hinge
system for premium flush doors. Easily adjustable in 3-Dimensions,
These 3D Adjustable hinges bring an unparalleled level of
performance, precision and control over what has previously been a
difficult detail to build and maintain. There is no other hinge
system in the world that provides the solutions.
Designers spend time detailing an "invisible" door, they may go
through endless rounds of picking veneer to match the grain
exactly, and simply want to keep clean and dead-even gaps around
their door panels. Because our hinge is adjustable in 3 dimensions
large and heavy doors can be installed quickly, saving money for
the millworker and installer and insuring it all looks sharp in the
end. In reality, for detail-driven designers, nothing is ever
really invisible. So, when you open that door, at the very least,
the hinge better match the finish of the hardware on the rest of
the project.
Drawing:

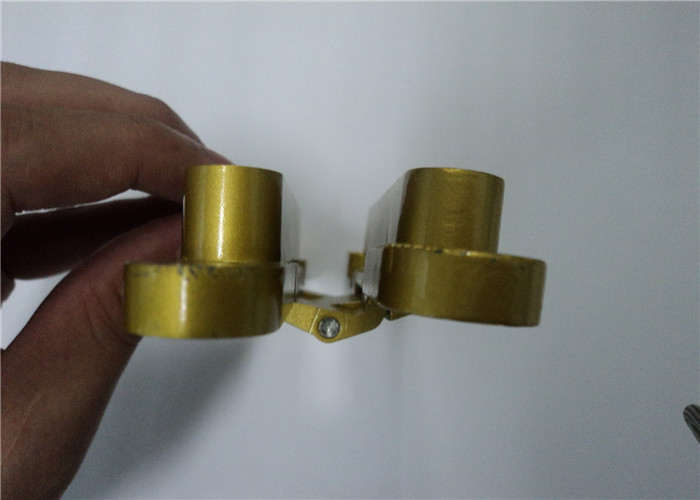

Real Photos in Gold Painted Surface:
