Big Wooden Adjustable Door Hinges Casting SUS 304 Corrosion
Resistance
Item No.: BG008
Name: 28x160mm Fire Rating 3D Adjustable Concealed Hinge for Big
Wooden Metal Door
Details:
| Size(Width x Height): | 28x160mm |
| Material: | Casting SUS 304 |
| Adjustment range | up&down±3.0mm, left&right: ±3.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Satin/ Polished/ Antique Brass/ Antique Copper/ Black/ PVD. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior
door etc |
| Weight loading: | 80 kgs/2 pcs. 120 kgs/3 pcs |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Fire rating | ＞1.5 hours |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be
invisible installation,Concealed for a complete flush look,high
quality, high sensory, durable and silent |
Fire Rating 3D Adjustable Concealed Hinge Introduction:
Three Demensions Adjustable Invisible Hinges are a kind of high
quality, high sensory, durable and silent door hinge products. The
most advantage is to adjust the door frame&leaves without
disassemblying door leaves.
Our high quality Adjustable Concealed Door Hinge BG009 is for use
in metal or wood applications, and it is universal for
right&left open doors. This hinge has been tested and past 1.5 hours on fire rating,
100,000 times on open&close(weight loading 80 kgs/2 pcs). Usually we suggest to install 3 pcs of hinges/door. door size:
Minimum thickness 40mm, Max width 1000mm, max height 2000mm. If the
door height is more than 2100, please use 4 hinges.
This full size door hinge will provide superior appearance and durability. These hinges are used where compact size, smooth
operation, and flush fit are necessary Concealed Hinges open a full
180° and are a single action hinge. Multiple Finishes Available!
Use at least one hinge for every 20" of door height or portion
thereof, or one hinge for every 100 lbs. or fraction thereof,
whichever calculation demand more hinges.
Made in Jiangmen Guangdong CHINA, JKL 3D Adjustable Concealed
Hinges are the most comprehensive concealed hinge system for
premium flush doors. Easily adjustable in 3-Dimensions, These 3D
Adjustable hinges bring an unparalleled level of performance,
precision and control over what has previously been a difficult
detail to build and maintain. There is no other hinge system in the
world that provides the solutions and
Features
Security - When closed, the 3D Concealed Hinge cannot be seen or tampered
with. When opened, the riveted hinge pin is non-removable.
Safety - The moving pivot point remains inside the hinge during travel
until fully opened, eliminating an external pinch point on the back
side of the door.
Strength - The installed hinge is firmly anchored in a deep, full mortise,
which assists the screws in supporting the door, assuring a
stronger, more rigid installation.
Superior Construction - Adjustable Invisible Hinges are designed to give dependable
operation for years. Standard hinges are made of high strength SUS
304 casting.

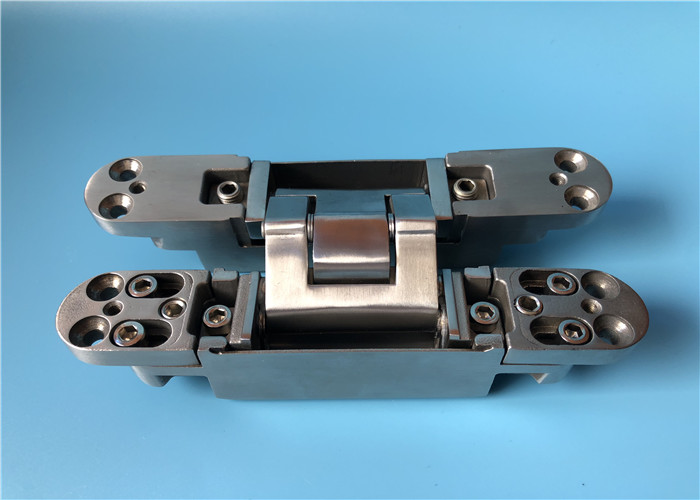

Real Photos in Satin Surface
