Fire Proofing Solid SS 304 Heavy Duty Invisible Hinge For Security
Metal Door
Product Details:
| Name | Fire proofing Solid SS 304 Heavy duty Invisible Hinge |
| Width | 28mm |
| Length | 118mm |
| Intermediate gap | 22mm |
| Deepth | 41mm |
| Min door thickness | 40mm |
| Regular Surface | Satin, Polished, AB, AC, PVD. |
| Fire rating time | ＞1.5 hours |
| Weight bearing | 100 kgs/3 pcs |
| Service life | ＞5 years |
| Nearest port | Jiangmen, Shenzhen, Guangzhou. |
Usage and Installation
- Fire rated full stainless steel 304 conceal invisible door hinge
Suitable for solid wood door, steel wood door, wood door, security
door, steel door, armored door, - decorative craft door, fire door, composite door, aluminum
alloy.door, wood plastic door, cabinet door,
- metal door, bronze series craft door, glass Mosaic, outside door,
interior door, wooden door, aluminum alloy
- door, plastic door,aluminum wood doors, stainless steel door, flat
open door, ecological door, interior door,
- explosion-proof door, anti-knock door, fire door, etc
- Tested for over 200,000 cycles ,no abrasion
Standard packing:
White inner boxes,Yellow-brown outer cartons.
1 pc/poly bag, 2 pcs/inner white box, 20 pcs/carton.
N.W/piece:1.45 kgs; N.W./carton:19.00 kgs; G.W./carton: 20.00 kgs.
Carton Size: 32.5X25X11CM
Queations you may ask:
1, Samples' free or charged including the express cost?
Samples' cost less than USD 50.00 will not be charged, express cost
on customer's side.
2, Factory area and number of employees?
5000 ㎡&100 workers
3, Delivery time for regular orders?
We always keep s small amount of stock(around 1000 pcs for each
sizes), and for mass orders, certainly finish from 15 days up to 30
days.
4, Your capacity for one month?
Up to 500,000 pcs accoding to different sizes.
5, Your annual sales value?
In 2017, exceed 6 million dollars.
6, How will you treat on after-sale quality problems?
If responsibility confirmed on our side, we will make full
compensation for free including shipping charge.

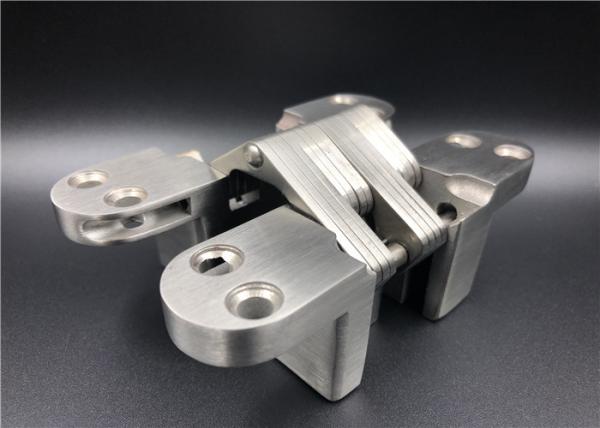

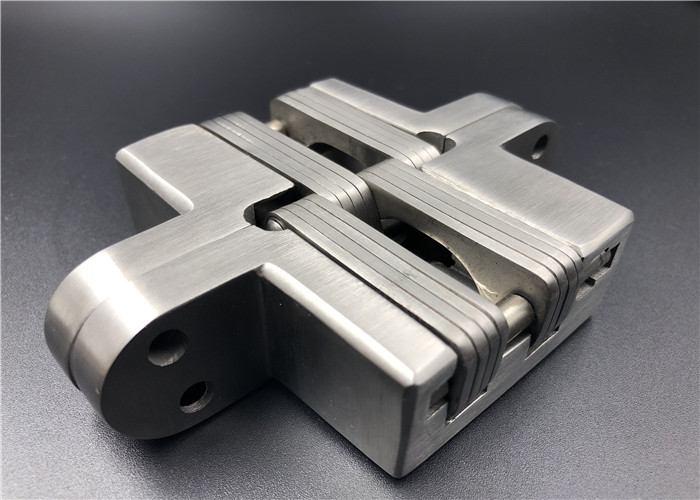

Real photos:
