3D Adjustable Heavy Duty Soss Hinges Stainless Steel 304 / 201
Water Resistance
Model No.: CG002
Name: 28x118mm Fireproof Casting Stainless steel Concealed Hinge
for Heavy Duty Wooden Metal Door
Stainless steel Concealed Hinge details:
| 1, Size(WxLxSpace) | 28x118x22mm. |
| 2, Min door thickness | 40mm. |
| 3, Product material | Casting SS 304 body, SS 304/201 connecting arms. |
| 4, Popular surface finishes | Satin, Polished, Antique brass, Antique copper, PVD. |
| 5, Main usage | Fireproof door, Wooden door, Entrance door, Villa door, big door,
etc. |
| 6, Residential&Commercial Usage | Both available. |
| 7, Weight loading | 120 kgs/3 pcs. |
| 8, Open degree | 180°. |
| 9, Distinguishing for left or right | No. |
| 10, Quality testing&certificate | SGS, CNAS, MA, AL, Work Safety Standardization. |
| 11, Advantages | Drilling to be invisible installation,Concealed for a complete
flush look,high quality, high sensory, durable and silent. Fire Proof more than 1.50 hours, Heavy duty loading. |
What a Fireproof Stainless steel Concealed Hinge can do?
Due to the raw material of Casting Stainless steel, our Stainless
steel Concealed Hinge has two big advantages: fire protection and
heavy duty weight bearing
Our hinges are perfect through more than 1.50 hours of fire test.
After testing, the door is well closed, without obvious deformation
and displacement.
Specifically to this hinge CG002 28x118mm, the load-bearing
capacity can reach 120 kg /3 pcs, and the opening and closing times
can reach 200 thousand times without obvious sinking and
displacement.
If you are interested, we have some related test reports for you
reference. Please contact us.
Do fireproof SS Concealed hinges, we are professional and serious!
Stainless steel Invisible Hinges provide security and safety as
well as a clean contemporary look:
- When closed, hinges cannot be seen or tampered with - when open,
riveted pins cannot be removed (hinge opens to 180°).
- High-strength Casting Stainless steel.
- Choose from Satin, Polished, Antique Brass, Antique copper finishes
in a number of sizes.
- To install, mortise out wood door and jamb using a drill bit and
clean up with a chisel (paper template, instructions and mounting
screws included).
- Smaller hinges sold in carded pairs; 2-3/4 and larger hinges sold
each.
- For faster and more accurate hinge installation, the optional
Router Guide Template ensures a perfect mortise:
- Individually handcrafted template fastens to door and jamb with
nails - guide pins locate the deep mortise.
- Router, router bit and 3/4" O.D. guide bushing with lock nut
required (not included).
Queations you may ask:
1, Samples' free or charged including the express cost?
Samples' cost less than USD 50.00 will not be charged, express cost
on customer's side.
2, Factory area and number of employees?
5000 ㎡&100 workers
3, Delivery time for regular orders?
We always keep s small amount of stock(around 1000 pcs for each
sizes), and for mass orders, certainly finish from 15 days up to 30
days.
4, Your capacity for one month?
Up to 500,000 pcs accoding to different sizes.
5, Your annual sales value?
In 2017, exceed 6 million dollars.
6, How will you treat on after-sale quality problems?
If responsibility confirmed on our side, we will make full
compensation for free including shipping charge.

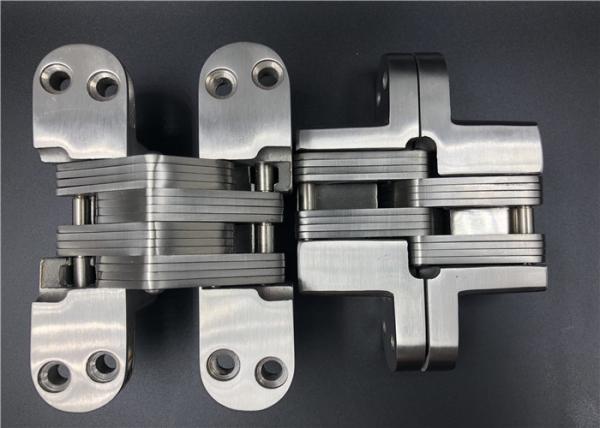

Satin Finish real photos:
