Fire Rating Solid Mortise Mount Invisible Hinge 30mm Thickness With
4 Holes
Item No.: CG004
Size: 19x95x13mm
Name: Fire rating Solid Mortise Mount Invisible Hinge for Fire door
Folding door 30mm
SS Solid Mortise Mount Invisible Hinge details:
| 1, Size(WxLxSpace) | 19x95x13mm. |
| 2, Min door thickness | 30mm. |
| 3, Product material | Casting SS 304 body, SS 304/201 connecting arms. |
| 4, Popular surface finishes | Satin, Polished, Antique brass, Antique copper, PVD. |
| 5, Main usage | Fireproof door, Wooden door, Entrance door, Villa door, big door,
etc. |
| 6, Residential&Commercial Usage | Both available. |
| 7, Weight loading | 60 kgs/3 pcs. |
| 8, Open degree | 180°. |
| 9, Distinguishing for left or right | No. |
| 10, Quality testing&certificate | SGS, CNAS, MA, AL, Work Safety Standardization. |
| 11, Advantages | Drilling to be invisible installation,Concealed for a complete
flush look,high quality, high sensory, durable and silent. Fire Proof more than 1.50 hours, Heavy duty loading. |
The biggest advantages of a Fireproofing Stainless steel SOSS
Invisible Hinge:
Our hinges are perfect through more than 1.50 hours of fire test.
After testing, the door is well closed, without obvious deformation
and displacement.
Specifically to this hinge CG002 28x118mm, the load-bearing
capacity can reach 120 kg /3 pcs, and the opening and closing times
can reach 200 thousand times without obvious sinking and
displacement.
SS SOSS Invisible Hinges are designed to give dependable operation
for years. Standard hinges are made of high strength plated steel
and heavy duty Stainless steel castings. When closed, the SOSS
Invisible Hinge cannot be seen or tampered with. When opened, the
riveted hinge pin is non-removable.
Do fireproof SOSS Concealed hinges, we are professional and
serious!
Reasons to buy SOSS Invisible Hinges from us:
1, More than 18 years of professional manufacturing experience on
Invisible Hinges;
2, Strict product quality control by advanced equipment and excellent R&D Team;
3, Quick and timely delivery;
4, Proper and sturdy packing;
5, Small order welcomed(1-100 pcs no problem);
6, Perfect after-sales service and product use tracking;
7, More than 99% of the praise rate through the 18 years.
FAQ
1. Could i get some samples for reference before ordering?
Yes, we could send you samples firstly, the samples are free. But
the freight cost will be paid by your side.
2. What payment terms you accept?
Normally, T/T, Western Union will be available. But it all depends.
We will discuss with you when ordering.
3. What kind of shipment you will choose when products finished?
TNT, UPS, FedEx, DHL, SF express, EMS, by sea, we will ship to you
as per what way you like.
4. How much is the company annual sales volume?
Around US$6.0 million.
5. Do you have any experience of attending fair every year?
Yes, we do, we attend many international fairs 2-3 times per year,
For example, we attend the Beijing door fair every year in march,
Guangzhou Constitution fair in July, Guangzhou carton fair both in
April and October.

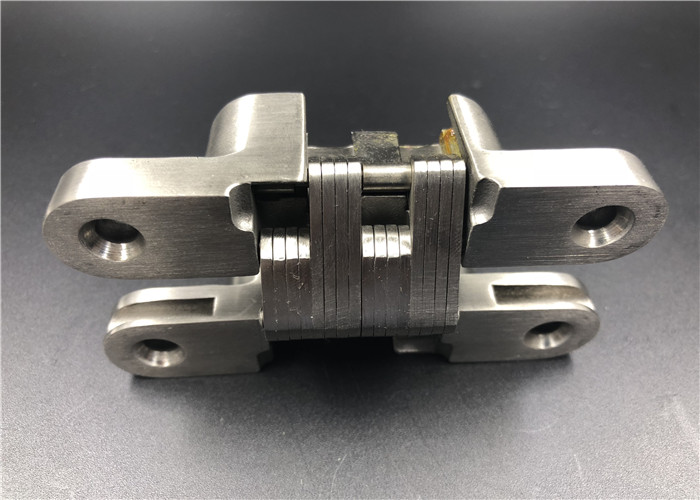

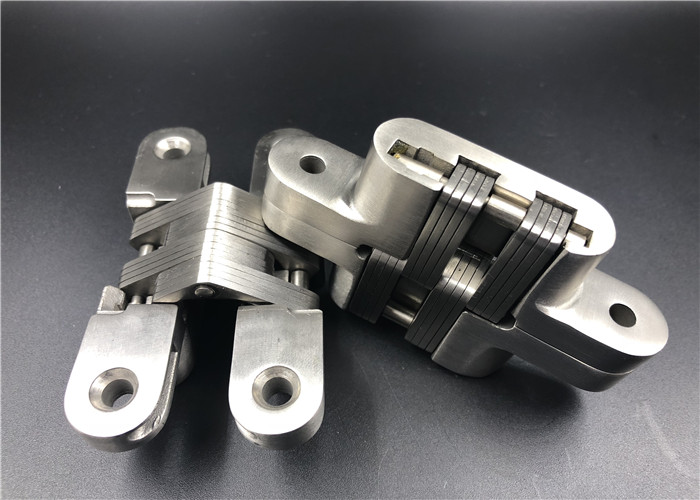

Satin Stainless steel Finish photos:
