High Sensory Concealed Cabinet Hinges , Zinc Alloy 180 Degree
Hidden Hinge
Features of Concealed Cabinet Hinges
Concealed Cabinet Hinges gives you a spring closer that is totally invisible from either
side when the door is closed. When the door is open, you see only
the hinge face and links.
The closure rate is completely adjustable with an allen wrench
after installation, and does not require removal of the spring
closer. Installation can be either inside the door itself or inside
the door jamb. Allow one spring closer for each 75 lbs. of door
weight for all spring closers.
Concealed Cabinet Hinges is ideally suited for all types of doors 1-3/8" (216IC), 1-3/4"
(218IC), and 2" (220IC) thick. Recommended spacing is one half of
the distance from the center of the door to the center of the top
hinge.
Concealed Cabinet Hinges PARAMETERS:
| Size(Width x Height): | 23*95mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Pearl Chrome/Satin Chrome / SS Arms / Satin Brass / Chrome Painted/
Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior
door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be
invisible installation,Concealed for a complete flush look,high
quality, high sensory, durable and silent |
FAQ
Q: How do your company manage your production site?
A: We strictly implement the 5S management
(SEIRI,SEITON,SEISO,SETKETSU,SHTSUKE), which can improve product
quality, reduce or eliminate the not conforming rate efficiently.
Q: Can we get your sample?
A: Of course. But I am sorry to say that you need to be charged
with the freight and sample cost.
After all, only a paid sample is valuable and precious.
Q: Can I see your certification?
A: Of course. Because our certification is too much, we can not
display evey one, we will give you at any time once you ask for it.
Q:Could I visit your factory or office?
A: Sure, just please tell us in advance, if our time is available,
we can pick you up in case you don’t know the road to our office or
factory.

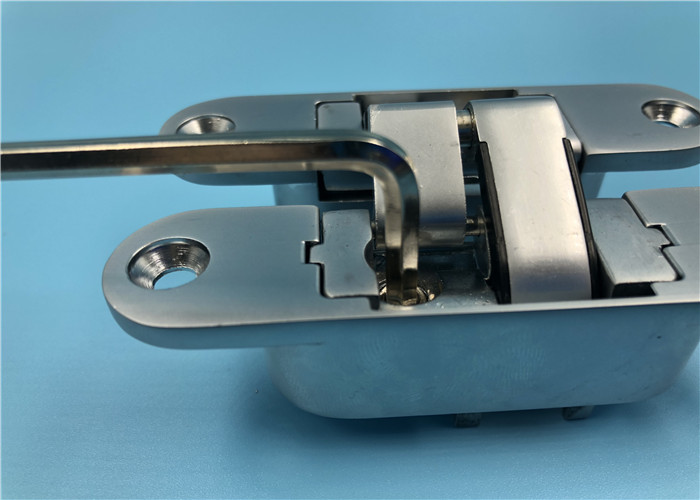

Concealed Cabinet Hinges details
