Universal 3d Adjustable Door Hinges / Anti Rust SOSS Cabinet Hinges
About US
Designers spend time detailing an "invisible" door, they may go
through endless rounds of picking veneer to match the grain
exactly, and simply want to keep clean and dead-even gaps around
their door panels. Because our hinge is adjustable in 3 dimensions
large and heavy doors can be installed quickly, saving money for
the millworker and installer and insuring it all looks sharp in the
end. In reality, for detail-driven designers, nothing is ever
really invisible. So, when you open that door, at the very least,
the hinge better match the finish of the hardware on the rest of
the project.
3d Adjustable Door Hinges Features:
| Size(Width x Height): | 28*135*140mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Pearl Chrome /Satin Nickel / Satin Chrome / SS Arms / Satin Brass /
Chrome Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior
door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be
invisible installation,Concealed for a complete flush look,high
quality, high sensory, durable and silent |
Zinc Alloy Adjustable 3D Concealed Hinge Introduction:
Our 3D Concealed Hinge is made by Casting Zinc alloy, the weight
loading is at 40 kgs/2 pcs hinges, it mainly be used for light duty
wooden doors or PVC Aluminum doors, and the cost is much less too.
So customer can choose according to your door size and weight. If
your door is not too heavy and wide, is your better choice.
Our Adjustable Concealed Door Hinge is for use in metal or wood
applications, and it is universal for right&left open doors.
This hinge has been tested by 100,000 times on
open&close(weight loading 40 kgs/2 pcs). Usually we suggest to
install 3 pcs of hinges/door. door size: Minimum thickness 40mm,
Max width 1000mm, max height 2000mm. If the door height is more
than 2100, please use 4 hinges.
Invisible, but not unsightly.
Our 3D Adjustable Concealed hinge has been going from being a
welcome technologically superior substitute for other "invisible"
hinges when the odd concealed door was detailed, to one that is
being throughout a project's interior and exterior doors. This
acceptance has grown from a realization by contractor, millworker
and architect alike of the significant cost savings that an
adjustable hinge can bring to the project.

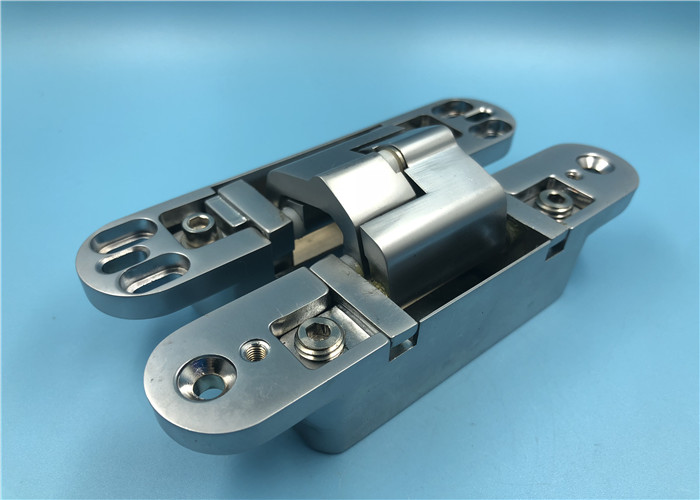

3D Concealed Hinges details
