Durable Adjustable 3D Concealed Hinges Heavy Duty Hidden Hinges
21mm Width
3D Concealed Hinges Application :
A. For wooden doors
B. For swing doors
C. Concealed installation
D. With 3D adjustable ±1.5mm,depth ±1mm and width ±1mm
E. Opening 180°
F. Made of special Zinc alloy
Feature:
a.high-quality plating, not easy to oxidation
b.rigid design, not easy to wearness
c.modern beautiful design
d.suitable for heavy-duty doors
e.widely used in department stores, public space, house furnishing
and hotels security door, entrance door, antitheft door, anti-fire
door, wooden door and interior door
Features:
| Size(Width x Height): | 30*110mm |
| Material: | Satin Brass |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Satin Brass Chrome Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior
door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be
invisible installation,Concealed for a complete flush look,high
quality, high sensory, durable and silent |
easy to maintain:
for owners and facilities managers who are looking for short-term value and long-term dependability,
3D hinge is the high performance hinge that delivers both. As
discussed above, the JKL® system, with its ease of installation and
3-dimensional adjustability, has built-in efficiencies for your
project. 3D hinges are engineered with maintenance-free bearings so
there is no need for a scheduled greasing. Well-installed 3D
invisible hinges are essentially set for the life of the building (our hinges have been tested to 100,000 cycles under full load). Unlike concealed cabinet hinges, aka European hinges, our 3D
invisible hinges are engineered to take on heavier doors. There is
no other product at any price which brings together all the
features and options that the 3D hinge system offers. With our
worldwide reputation as a conscientious manufacturer of
state-of-the-art hinges, you can be assured that you have provided
your project with the highest quality hardware available anywhere.
Our 3D Adjustable Hinges are a comprehensive system offering
options for wood, steel and aluminum frames, permanent power
transfer, a complete range of optimized door capacities, and, of
course, the ability to adjust them.
Designers spend time detailing an "invisible" door, they may go
through endless rounds of picking veneer to match the grain
exactly, and simply want to keep clean and dead-even gaps around
their door panels. Because our hinge is adjustable in 3 dimensions
large and heavy doors can be installed quickly, saving money for
the millworker and installer and insuring it all looks sharp in the
end. In reality, for detail-driven designers, nothing is ever
really invisible. So, when you open that door, at the very least,
the hinge better match the finish of the hardware on the rest of
the project.
Invisible, but not unsightly.
Our 3D Adjustable Concealed hinge has been going from being a
welcome technologically superior substitute for other "invisible"
hinges when the odd concealed door was detailed, to one that is
being throughout a project's interior and exterior doors. This
acceptance has grown from a realization by contractor, millworker
and architect alike of the significant cost savings that an
adjustable hinge can bring to the project.

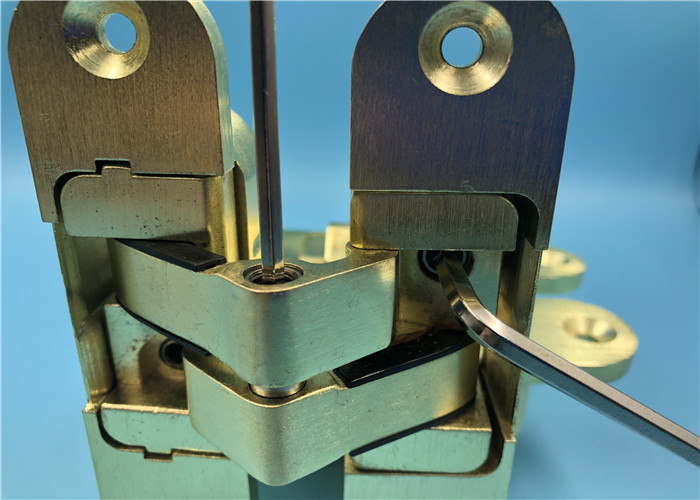

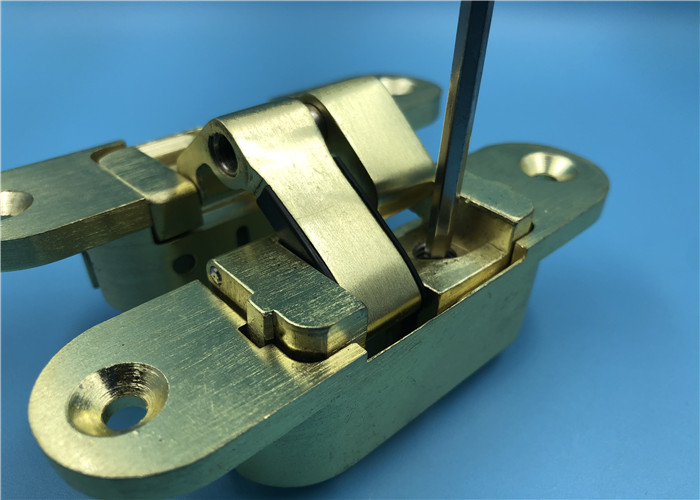

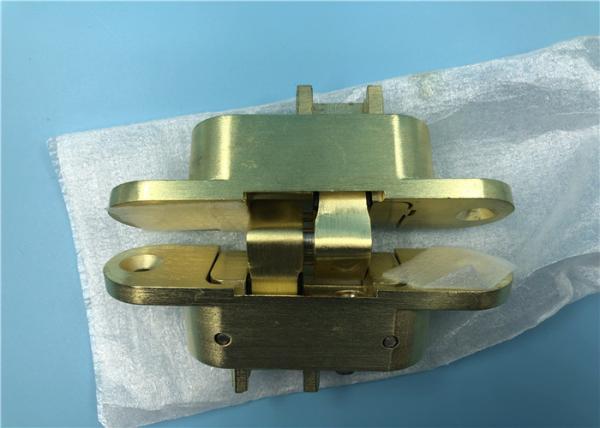

3D Concealed Hinges details
