Satin Chrome 3D Concealed Hinges For Solid Wood / Metal Door Left
Open
Item No.: BG001
3D Concealed Hinges Features:
| Size(Width x Height): | 30*110mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Satin Chrome / Satin Brass / Chrome Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior
door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be
invisible installation,Concealed for a complete flush look,high
quality, high sensory, durable and silent |
easy on the eyes: for architects and designers choosing our 3D hinges can make the
difference between realizing your vision and having it remain just
a vision.
Designers spend time detailing an "invisible" door, they may go
through endless rounds of picking veneer to match the grain
exactly, and simply want to keep clean and dead-even gaps around
their door panels. Because our hinge is adjustable in 3 dimensions
large and heavy doors can be installed quickly, saving money for
the millworker and installer and insuring it all looks sharp in the
end. In reality, for detail-driven designers, nothing is ever
really invisible. So, when you open that door, at the very least,
the hinge better match the finish of the hardware on the rest of
the project.
Invisible, but not unsightly.
Our 3D Adjustable Concealed hinge has been going from being a
welcome technologically superior substitute for other "invisible"
hinges when the odd concealed door was detailed, to one that is
being throughout a project's interior and exterior doors. This
acceptance has grown from a realization by contractor, millworker
and architect alike of the significant cost savings that an
adjustable hinge can bring to the project.

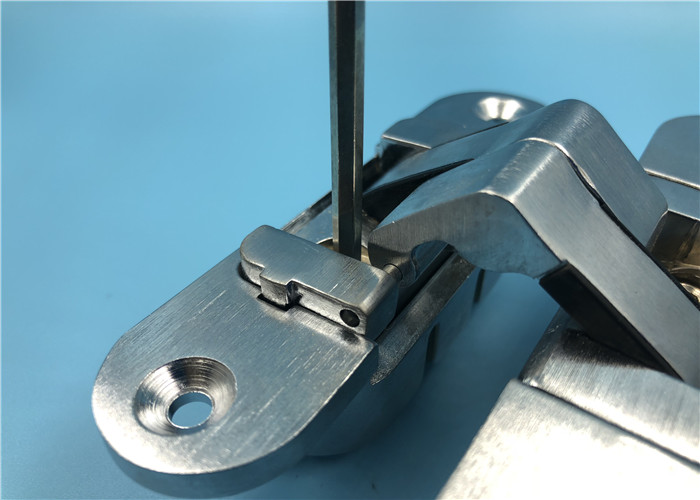

3D Concealed Hinges details
