Medium Duty 3D Concealed Hinges With Stainless Steel Arms 30*110mm
3d Adjustable Door Hinges introduction:
This Soss medium duty hinge is completely concealed when the door
is closed.
Made from high strength plated steel and heavy duty zinc alloy
castings.
Beautiful when open...Invisible when closed. Soss Mortise Mount
Invisible hinges for designed to provide security, strength and
safety.
Minimum Door Thickness: 30mm
Key Features: Invisible from either side when closed, Moving pivot
point remains inside hinge during travel, Deep mortise of hinge
assures a strong installation
Product Finish: Satin Chrome
Features:
| Size(Width x Height): | 30*110mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | SS Arms / Satin Chrome / Satin Brass / Chrome Painted/ Gold
Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior
door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be
invisible installation,Concealed for a complete flush look,high
quality, high sensory, durable and silent |
Zinc Alloy Adjustable 3D Concealed Hinge Introduction:
Designers spend time detailing an "invisible" door, they may go
through endless rounds of picking veneer to match the grain
exactly, and simply want to keep clean and dead-even gaps around
their door panels. Because our hinge is adjustable in 3 dimensions
large and heavy doors can be installed quickly, saving money for
the millworker and installer and insuring it all looks sharp in the
end. In reality, for detail-driven designers, nothing is ever
really invisible. So, when you open that door, at the very least,
the hinge better match the finish of the hardware on the rest of
the project.

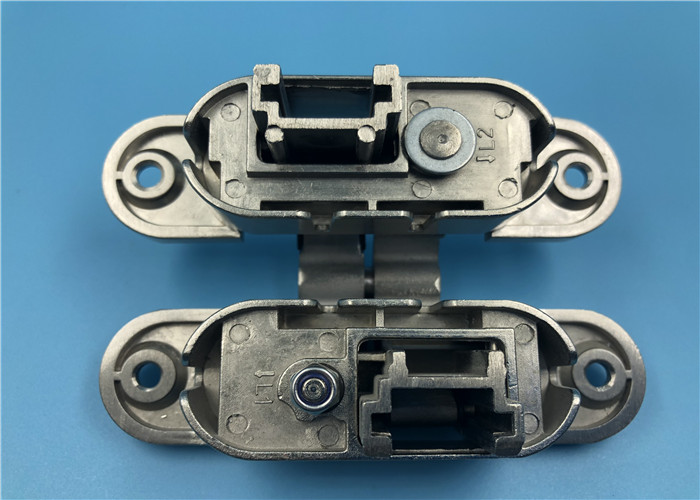

3D Concealed Hinges details
