Pearl Chrome Invisible Cabinet Hinges / Heavy Duty Concealed
Mortise Hinge
Invisible Cabinet Hinges Introduction
(1) Good quality of conceal hinge
(2) with reasonable price
(3) Every process will be checked by responsible QC which insure
the products' quality
(4) Spring hinge with ordinary or export packing, Goods will be
packed safe and carefully
Invisible Cabinet Hinges Features:
| Size(Width x Height): | 30*110mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Pearl Chrome / SS Arms / Satin Chrome / Satin Brass / Chrome
Painted/ Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior
door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be
invisible installation,Concealed for a complete flush look,high
quality, high sensory, durable and silent |
Invisible, but not unsightly.
Our 3D Adjustable Concealed hinge has been going from being a
welcome technologically superior substitute for other "invisible"
hinges when the odd concealed door was detailed, to one that is
being throughout a project's interior and exterior doors. This
acceptance has grown from a realization by contractor, millworker
and architect alike of the significant cost savings that an
adjustable hinge can bring to the project.
Service
- Reply you enquiry in 24 working hours.
- Experienced staffs answer your questins in fluent English.
- Customized design is available ,OEM &ODM are welcomed.
- Quality of goods are double checked before shipping.
- Special discount and protection of sales area provided to our
distributor.

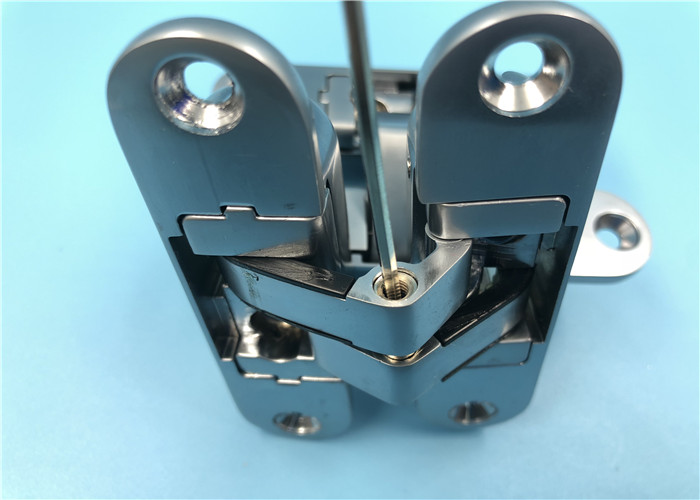

Invisible Cabinet Hinges details
