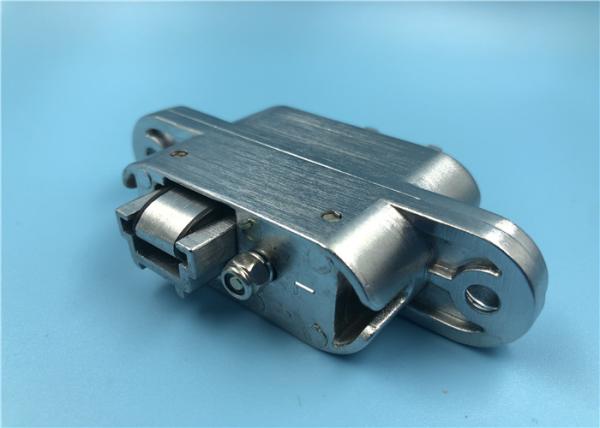

180° Heavy Duty Cabinet Door Hinges / Self Closing Concealed Hinges
60 Kgs/3 Pcs
Something more you need know about Heavy Duty Cabinet Door Hinges
Heavy Duty Cabinet Door Hinges are designed to be invisible when the cabinet is closed. They are
hidden inside the door and the frame so that only a small part is
visible when the door is open. These hinges are expensive and
difficult to install. They require extensive shrouds cut in the
door and the frame, which is a complex task that is best, left to
master carpenters. SOSS hinges are used in high-end cabinetry, and
are designed for all types of cabinet designs.
Heavy Duty Cabinet Door Hinges create a fold in the paper template with door hardware in the
annotated line. Poke a hole through the drill bit indicators in the
template with a pencil. Use the template to guide the shape holes
in the door with a drill fitted with drills of appropriate size.
Heavy Duty Cabinet Door Hinges Features:
| Size(Width x Height): | 23*95mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Popular surface finishes: | Satin Chrome/Pearl Chrome / SS Arms / Satin Brass / Chrome Painted/
Gold Painted. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior
door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be
invisible installation,Concealed for a complete flush look,high
quality, high sensory, durable and silent |
Invisible, but not unsightly.
Our 3D Adjustable Concealed hinge has been going from being a
welcome technologically superior substitute for other "invisible"
hinges when the odd concealed door was detailed, to one that is
being throughout a project's interior and exterior doors. This
acceptance has grown from a realization by contractor, millworker
and architect alike of the significant cost savings that an
adjustable hinge can bring to the project.
Our Advantages
· High Quality Products Standard
· 10 Years of Hardware Making Experience
· CE Certificate
· Best After Service
· 24 Hours Online Service
· OEM / ODM are Available
· 100% Factory
Heavy Duty Cabinet Door Hinges details
