OEM Adjustable Door Hinges / Durable Concealed Hinges Stainless
Steel
Adjustable Door Hinges Features:
- Aesthetics - The hinges are mounted directly into the door from the inside
surface so when the door is closed, the hinge cannot be seen.
- Security - When the door is in the closed position, the hinge cannot be
accessed or tampered. Even in the open position, the exposed
riveted pin is not removable.
- Safety - The moving pivot point remains inside the hinge during travel
until fully opened, eliminating an external pinch point on the back
side of the door.
- Parallel Mounting - The unique mounting of these invisible hinges allow for almost
unbroken surfaces between doors and frames to achieve a sleeker,
more visually appealing look while door is open. It also consumes
very little volume, leaving more room inside cramped cabinets.
- 180° Opening - Door swings completely around, allowing full unobstructed access
to the cabinet contents.
- Unique Motion Path - Motion path is non-circular and swings away from the cabinet,
allowing for tight door clearance.
- Proven Design - These invisible hinges are designed to give smooth dependable
operation for years. They are made of high strength plated steel
and heavy duty zinc alloy castings.
- Finishes - Satin Brass and Satin Chrome are in stock. Satin Bronze,
Polished Chrome, Polished Brass and Unplated are quickly available.
- JINKAILI Service - Same Day Shipment, ISO9002 Quality, Variety, Custom Items,
Automation, there are many reasons to choose JINKAILI
Adjustable Door Hinges Parameters:
| Size: | 28*135*140mm |
| Material: | Zinc alloy Body, Aluminum arm. |
| Adjustment range | up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm. |
| Main usage: | Wooden door, Metal door, Folding door, Concealed door, Interior
door etc |
| Weight loading: | 60kgs/3pcs. |
| Distinguishing for left or right: | No. |
| Min door thickness: | 40mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
easy to maintain:
Our 3D Adjustable Hinges are a comprehensive system offering
options for wood, steel and aluminum frames, permanent power
transfer, a complete range of optimized door capacities, and, of
course, the ability to adjust them.
Designers spend time detailing an "invisible" door, they may go
through endless rounds of picking veneer to match the grain
exactly, and simply want to keep clean and dead-even gaps around
their door panels. Because our hinge is adjustable in 3 dimensions
large and heavy doors can be installed quickly, saving money for
the millworker and installer and insuring it all looks sharp in the
end. In reality, for detail-driven designers, nothing is ever
really invisible. So, when you open that door, at the very least,
the hinge better match the finish of the hardware on the rest of
the project.
Invisible, but not unsightly.
Our 3D Adjustable Concealed hinge has been going from being a
welcome technologically superior substitute for other "invisible"
hinges when the odd concealed door was detailed, to one that is
being throughout a project's interior and exterior doors. This
acceptance has grown from a realization by contractor, millworker
and architect alike of the significant cost savings that an
adjustable hinge can bring to the project.

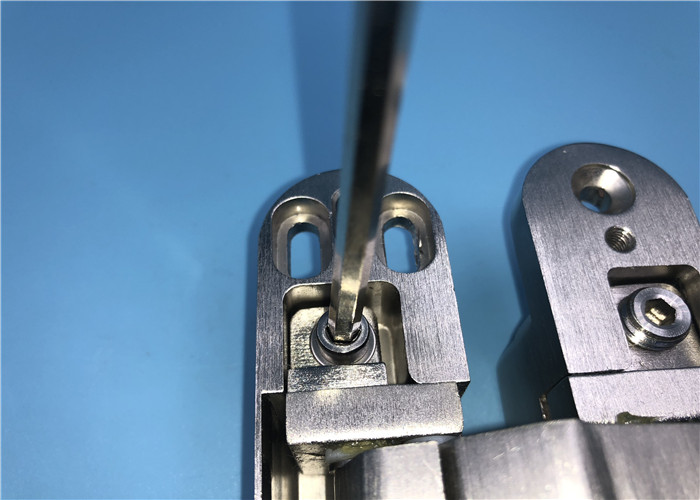

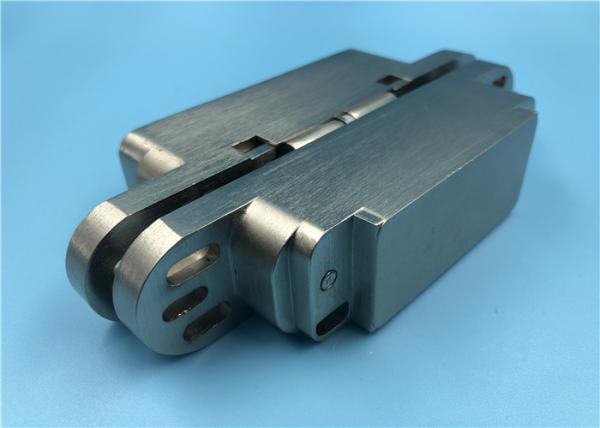

Adjustable Door Hinges details
